Press release · Stockholm · 1 April 2024
Dual Cortex-A55, EdgeLock Secure Enclave and Ethos-U65 NPU bring NXP's i.MX 9 series to both pin-compatible TX and 27 mm solder-down QS form factors.

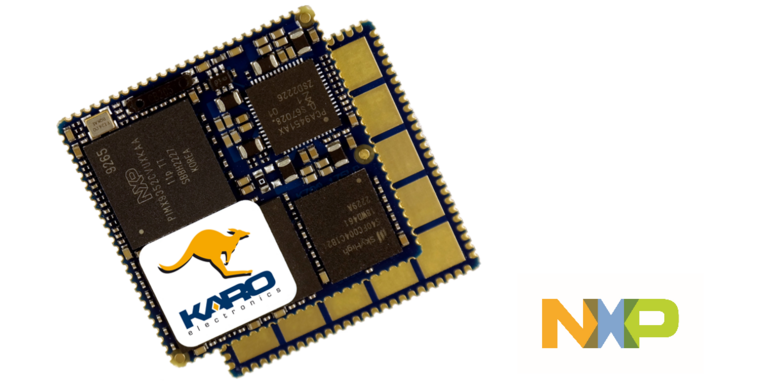

Strategic Embedded has announced the TX93-5210 and QS93-5210 System-on-Modules — two new NXP i.MX 93 processor-based modules covering both pin-compatible TX and 27 mm solder-down QS form factors. The i.MX 93 is one of the first NXP i.MX 9 series applications processors to ship on Ka-Ro hardware, bringing modern Cortex-A55 performance, an integrated Ethos-U65 NPU and NXP's EdgeLock Secure Enclave to industrial designs.
TX93-5210 vs QS93-5210 — pick your form factor
- TX93-5210 — 68 × 26 × 4 mm SO-DIMM, pin-compatible across the TX Family. Adds 2 MB NOR flash for boot. €84 Qty 1.
- QS93-5210 — 27 × 27 × 2.7 mm solder-down QFN, no connectors, lower profile, wider −40 °C industrial range. €84 Qty 1.
- Both share NXP's i.MX 93 silicon — drop into existing carrier boards or develop a single platform across the QS / TX Families.
Engineering specifications
| Item | TX93-5210 | QS93-5210 |
|---|---|---|
| Processor | NXP i.MX 93 (variant 9352 / 5210) | |
| CPU | 2× ARM Cortex-A55 @ 1.5 GHz + Cortex-M33 co-processor | |
| AI / NPU | Arm Ethos-U65, up to 0.5 TOPS | |
| Security | EdgeLock Secure Enclave | |
| RAM | 1 GB LPDDR4 | |
| Flash | 4 GB eMMC + 2 MB NOR | 4 GB eMMC |
| Display | LVDS | |
| Form factor | 68 × 26 × 4 mm, TX Family SO-DIMM | 27 × 27 × 2.7 mm QFN, solder-down |
| Temperature | −25 °C to +85 °C | −40 °C to +85 °C |
| OS | Linux (mainline BSP by Ka-Ro) | |
| Evaluation kit | TX00-SV70 Linux Headless Dev Kit | QS93-SV01 with QSBASE93 |
Availability and pricing
Both modules are available now via Strategic Embedded's webshop. TX93-5210: €84 Qty 1, €68 at 1,000 units. QS93-5210: €84 Qty 1, €60 at 1,000 units.
Designing on NXP i.MX 93?
Compare the TX93 and QS93 product pages, datasheets, and evaluation kits.
View QS93 product page → View TX93 product page →Downloads
About Strategic Embedded
Strategic Embedded is a division of Strategic Test AB, a specialist embedded electronics and test and measurement distributor with offices in Stockholm and Aachen Germany. Strategic Test has been an international distributor for KaRo Electronics GmbH since 2003 and exports to clients in the USA, UK, Germany, Italy, Spain, Sweden and Australia.
About Ka-Ro Electronics GmbH
With a core design team that was one of the pioneers of Transputer-based RISC processor parallel computing, Ka-Ro has grown from being a pioneer to a global leader in the ARM-based System on Modules market, with over 1 Million TX series of SoM installed. Ka-Ro's ARM-based SOMs are used worldwide in demanding industrial and transportation applications and medical devices. Based on NXP® and Qualcomm® processors, development kits include custom and continuing support for Embedded Linux and Microsoft® Windows Embedded BSPs. Customers can depend on Ka-Ro for the proven quality, expert support and guaranteed long-term availability they need to succeed.
