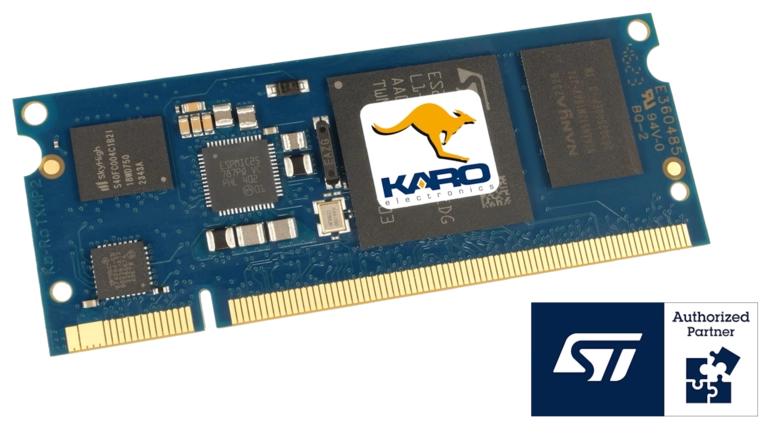

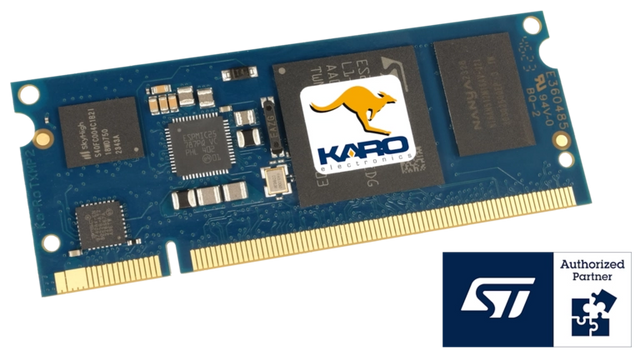

TXMP2

1.5 GHz Dual ARM® Cortex®-A35 based STM32MP255
1GB LPDDR4, 4GB eMMC
-40°C to 85°C
68 x 26 x 4 mm
Datasheet

The TXMP 2expands our TX Family of System on Modules with a STM32MP255 processor.

  • TXMP at a glance

    • Main CPU

    2x Cortex®-A35, 1.5GHz

    • MCU
    		Cortex®-M33 400MHz
    • Memory

    1GB LPDDR4
    4GB eMMC

    • Security
    		Secure boot, TrustZone® peripherals, active tamper, Cortex ® -M33 resources isolation
    • Display

    RGB, 3D GPU
    1080p60 video encode/decode

    • Expansion I/O

    2x USB with PHY
    PCIe

    • Network/Storage

    2x Ethernet
    SD/eMMC

    • IO

    3x UART, 3x I2C,
    2x SPI, PWM, SAI, 2x CAN

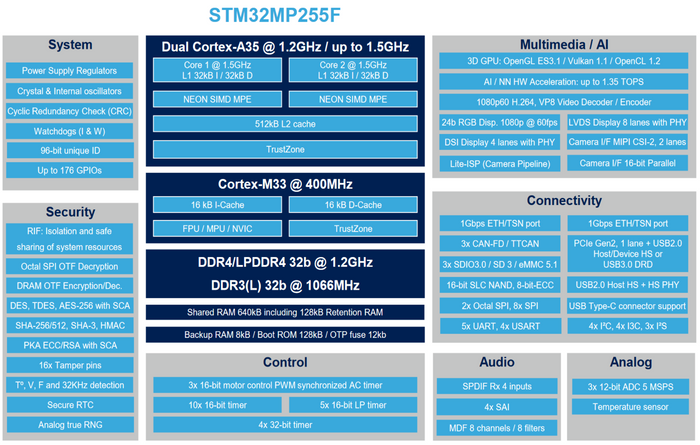

  • Processor features

    STM32MP2 microprocessor
    with dual Arm® Cortex® -A35
    and Cortex® -M33 Cores.

    The STM32MP2 series is an industrial-grade 64-bit solution for secure Industry 4.0 and advanced edge computing applications that require high-end multimedia capabilities. Reaching up to 6,000 DMIPS, they support the growth of smart, connected applications thanks to robust features and a significant performance upgrade compared to previous generations.

    For more information regarding STM32MP157 processor, see the ST product page.

  • TX Family

    Scalability

    Often, devices are required in different performance and price classes. This is where Ka-Ro’s TX standard comes into its own. With one single hardware design, embedded engineers can produce a range of pin- and software-compatible products. Ka-Ro introduced the TX CoM standard over six years ago. Until today, the Ka-Ro Starter Kit V has served as the unchanged development environment for all Ka-Ro TX modules, underlining Ka-Ro’s long-term product and family strategy. All TX modules can be used on a TX development kit, which enables great scalability and flexibility.

    Reduce to the max

    The philosophy behind Ka-Ro’s TX CoM family is to reduce a CoM down to the absolute minimum of components. In doing so, application designers and engineers using Ka-Ro CoM's can achieve maximum flexibility. Ka-Ro TX CoM modules solely feature the processor plus memory and the power supply. Any additional functions can be added to the base board.

    Longevity

    This focus on CoM's with a minimum number of components is on the one hand the key to very competitive pricing, on the other hand it enables Ka-Ro to ensure long-term availability. While processor manufacturers like NXP offer a long-term availability of 10 to 15 years, this must also apply to any further components integrated onto a module or these must be available via second sourcing and without any necessary software alterations. With these components integrated on a module, as is the case with many other manufacturers, this long-term availability is at risk or - from the very beginning - cannot be guaranteed.

    Read more in our TX-Guide.

Linux Headless Development Kit

The TX Mainboard 7 is a ready-to-use development system for building applications based on the TX embedded processor boards.

Linux is pre-installed and ready for application development. Other features include:

  • Single 5VDC power supply
  • RJ45 Ethernet connector
  • 3.5mm audio jack
  • TX DIMM signals available on solder pads
  • SD-Card socket
  • RS232 Debug UART on SUB-D header
  • RS232 UART on 10pin flat cable header
  • RS485 UART on 10pin flat cable header
  • CAN on 10pin flat cable header
  • LVDS Display on Hirose DF13 connector
Download Datasheet

  • An overview of the current standard variants.

    Customized versions on request.

  • Part Number TXMP2-2550
    Part Name TXMP2/255F/1GS/4GF/I
    Processor STM32MP255F
    SDRAM 1024 MiB
    Flash 4 GB
    Display-IF 24-bit RGB
    Temperature -40 °C to 85 °C

Customer Area File History

===============================================================
TXMP - 2025-08-11
===============================================================
Removed: 1646143 2024/07/16 14:32:16 \Datasheets\STM32MP2\Chip Errata\es0598-stm32mp251x3x5x7x-device-errata-stmicroelectronics-1.pdf
New : 1876609 2025/08/11 12:51:17 Datasheets\STM32MP2\Chip Errata\es0598-stm32mp23xx25xx-device-errata-stmicroelectronics-1.pdf
Removed: 16673632 2024/07/16 14:31:03 \Datasheets\STM32MP2\Data Sheet\stm32mp255c-16.pdf
New : 17272967 2025/08/11 14:58:14 Datasheets\STM32MP2\Data Sheet\stm32mp251c.pdf

===============================================================
TXMP - 2024-12-23
===============================================================
New : 730017 2024/08/12 12:53:07 3Dmodel\TXMP2-STEP.zip
New : 888942 2024/07/16 14:43:52 Datasheets\STM32MP2\Application Notes\AN3126 Audio and waveform generation using the DAC in STM32 products\an3126-audio-and-waveform-generation-using-the-dac-in-stm32-products-stmicroelectronics.pdf
New : 1919300 2024/07/16 14:41:59 Datasheets\STM32MP2\Application Notes\AN5027 Interfacing PDM digital microphones using STM32 MCUs and MPUs\an5027-interfacing-pdm-digital-microphones-using-stm32-mcus-and-mpus-stmicroelectronics.pdf
New : 5894902 2024/07/16 14:43:23 Datasheets\STM32MP2\Application Notes\AN5036 Guidelines for thermal management on STM32 applications\an5036-guidelines-for-thermal-management-on-stm32-applications-stmicroelectronics-1.pdf
New : 2882957 2024/07/16 14:43:00 Datasheets\STM32MP2\Application Notes\AN5225 Introduction to USB Type-C� Power Delivery for STM32 MCUs and MPUs\an5225-introduction-to-usb-typec-power-delivery-for-stm32-mcus-and-mpus-stmicroelectronics.pdf
New : 11581781 2024/07/16 15:00:36 Datasheets\STM32MP2\Application Notes\AN5418 How to build a simple USB-PD sink application with STM32CubeMX\an5418-how-to-build-a-simple-usbpd-sink-application-with-stm32cubemx-stmicroelectronics.pdf
New : 508829 2024/10/15 13:10:03 Datasheets\STM32MP2\Application Notes\AN5543 Guidelines for enhanced SPI communication on STM32 MCUs and MPUs\an5543-guidelines-for-enhanced-spi-communication-on-stm32-mcus-and-mpus-stmicroelectronics.pdf
New : 2281908 2024/07/16 14:41:09 Datasheets\STM32MP2\Application Notes\AN5612 ESD protection of STM32 MCUs and MPUs\an5612-esd-protection-of-stm32-mcus-and-mpus-stmicroelectronics-1.pdf
New : 1236765 2024/07/16 14:42:38 Datasheets\STM32MP2\Application Notes\AN5718 Migrating from STM32MP15x to STM32MP25x MPUs\an5718-migrating-from-stm32mp15x-to-stm32mp25x-mpus-stmicroelectronics.pdf
New : 2406426 2024/07/16 14:42:06 Datasheets\STM32MP2\Application Notes\AN5726 STM32MP2 MPUs using low-power modes\an5726-stm32mp2-mpus-using-lowpower-modes-stmicroelectronics.pdf
New : 161467 2024/07/16 14:45:23 Datasheets\STM32MP2\Application Notes\TN1489 Security bulletin TN1489-ST-PSIRT Physical attacks on STM32 and STM32Cube firmware\tn1489-security-bulletin-tn1489stpsirt-physical-attacks-on-stm32-and-stm32cube-firmware-stmicroelectronics-1.pdf
New : 1646143 2024/07/16 14:32:16 Datasheets\STM32MP2\Chip Errata\es0598-stm32mp251x3x5x7x-device-errata-stmicroelectronics-1.pdf
New : 16673632 2024/07/16 14:31:03 Datasheets\STM32MP2\Data Sheet\stm32mp255c-16.pdf
New : 260224 2024/07/16 14:37:33 Datasheets\STM32MP2\Fact Sheet\flstm32mp2-4.pdf
New : 2892848 2024/07/16 14:37:06 Datasheets\STM32MP2\Fact Sheet\microprocessors-stm32mp2-series-overview-1.pdf
New : 127809068 2024/10/15 13:05:28 Datasheets\STM32MP2\Processor Reference Manual\rm0457-stm32mp2325xx-advanced-armbased-3264bit-mpus-stmicroelectronics.pdf

===============================================================
TXMP - 2022-07-22
===============================================================
Updated: 3677302 2022/07/22 14:56:08 Datasheets\STM32MP1\Data Sheet\stm32mp157c.pdf
Removed: 494675 2020/05/27 09:18:43 \Datasheets\STM32MP1\Chip Errata\dm00516256-stm32mp151x3x7x-device-errata-stmicroelectronics.pdf
New : 607539 2022/07/22 14:52:57 Datasheets\STM32MP1\Chip Errata\es0438-stm32mp151x3x7x-device-errata-stmicroelectronics.pdf
Removed: 3544267 2020/04/30 10:10:51 \Datasheets\STM32MP1\Data Sheet\stm32mp151a.pdf
Removed: 3555816 2020/04/30 10:10:47 \Datasheets\STM32MP1\Data Sheet\stm32mp153a.pdf
Removed: 80934459 2020/04/30 10:12:09 \Datasheets\STM32MP1\Processor Reference Manual\STM32MP151\dm00366349-stm32mp151-advanced-armbased-32bit-mpus-stmicroelectronics.pdf
Removed: 83957141 2020/04/30 10:11:58 \Datasheets\STM32MP1\Processor Reference Manual\STM32MP153\dm00366355-stm32mp153-advanced-armbased-32bit-mpus-stmicroelectronics.pdf
Removed: 87007389 2020/04/28 13:31:23 \Datasheets\STM32MP1\Processor Reference Manual\STM32MP157\dm00327659-stm32mp157-advanced-armbased-32bit-mpus-stmicroelectronics.pdf
New : 86893611 2022/07/22 14:53:15 Datasheets\STM32MP1\Processor Reference Manual\STM32MP157\rm0436-stm32mp157-advanced-armbased-32bit-mpus-stmicroelectronics.pdf

===============================================================
TXMP - 2020-12-02
===============================================================
Removed: 19469846 2020/05/27 10:49:38 \FlashImages\txmp-1530-mb7-minimal.zip
Removed: 57164632 2020/05/27 10:44:02 \FlashImages\txmp-1530-mb7-weston.zip
Removed: 19477716 2020/05/27 10:31:58 \FlashImages\txmp-1570-mb7-minimal.zip
Removed: 57172372 2020/05/27 10:38:06 \FlashImages\txmp-1570-mb7-weston.zip

===============================================================
TXMP - 2020-11-19
===============================================================
Updated: 525433 2020/11/19 12:43:09 Datasheets\TXMP.pdf

===============================================================
TXMP - 2020-10-26
===============================================================
Updated: 526064 2020/10/26 11:01:38 Datasheets\TXMP.pdf

===============================================================
TXMP - 2020-05-27
===============================================================
Updated: 494675 2020/05/27 09:18:43 Datasheets\STM32MP1\Chip Errata\dm00516256-stm32mp151x3x7x-device-errata-stmicroelectronics.pdf
Removed: 122684595 2020/03/12 14:17:13 \FlashImages\txmp-1530-release.zip
Removed: 123192062 2020/03/12 13:36:27 \FlashImages\txmp-1570-release.zip
New : 19469846 2020/05/27 09:49:39 FlashImages\txmp-1530-mb7-minimal.zip
New : 57164632 2020/05/27 09:44:02 FlashImages\txmp-1530-mb7-weston.zip
New : 19477716 2020/05/27 09:31:58 FlashImages\txmp-1570-mb7-minimal.zip
New : 57172372 2020/05/27 09:38:06 FlashImages\txmp-1570-mb7-weston.zip

===============================================================
TXMP - 2020-05-04
===============================================================
New : 331569 2020/02/03 15:07:57 3Dmodel\TXMP-STEP.zip
New : 788986 2020/05/04 07:56:50 Datasheets\TXMP.pdf
New : 1722900 2017/09/11 09:23:32 Datasheets\Display\TM101JVHG32-00_V2.0.pdf
New : 428006 2009/03/16 10:27:59 Datasheets\Sockets\DIMM200\TYCO-4,0mm-1565691-1.PDF
New : 444591 2009/03/11 12:32:53 Datasheets\Sockets\DIMM200\TYCO-5,2mm-1473005-1.PDF
New : 421819 2008/07/10 08:00:36 Datasheets\Sockets\DIMM200\TYCO-6,5mm-1717468-3.PDF
New : 425849 2008/07/10 08:02:49 Datasheets\Sockets\DIMM200\TYCO-9,2mm-1612618-1.PDF
New : 2732268 2020/04/30 10:14:01 Datasheets\STM32MP1\Application Notes\Cortex-M4 MCUs and MPUs programming manual\dm00046982-stm32-cortexm4-mcus-and-mpus-programming-manual-stmicroelectronics.pdf
New : 373824 2020/04/30 10:12:54 Datasheets\STM32MP1\Application Notes\FDCAN peripheral\dm00625700-fdcan-peripheral-on-stm32-devices-stmicroelectronics.pdf
New : 1919300 2020/04/30 10:13:12 Datasheets\STM32MP1\Application Notes\Interfacing PDM digital microphones\dm00380469-interfacing-pdm-digital-microphones-using-stm32-mcus-and-mpus-stmicroelectronics.pdf
New : 647191 2020/04/30 10:13:23 Datasheets\STM32MP1\Application Notes\Lifetime estimates\dm00681502-stm32mp1-series-lifetime-estimates-stmicroelectronics.pdf
New : 1864833 2020/04/30 10:14:35 Datasheets\STM32MP1\Application Notes\Software development tools\en.stm32-stm8_software_development_tools.pdf
New : 1098934 2020/04/30 10:16:38 Datasheets\STM32MP1\Application Notes\STM32Trust\en.STM32Trust-product-overview.pdf
New : 229058 2020/04/30 10:13:28 Datasheets\STM32MP1\Application Notes\System power consumption\dm00595472-stm32mp1-series-system-power-consumption-stmicroelectronics.pdf
New : 5077738 2020/04/30 10:13:45 Datasheets\STM32MP1\Application Notes\Thermal management guidelines\dm00395696-thermal-management-guidelines-for-stm32-applications-stmicroelectronics.pdf
New : 524574 2020/04/30 10:13:49 Datasheets\STM32MP1\Application Notes\USB DFU USART protocols used in STM32MP1 Series bootloaders\dm00589815-usb-dfuusart-protocols-used-in-stm32mp1-series-bootloaders-stmicroelectronics.pdf
New : 1165041 2020/04/30 10:13:34 Datasheets\STM32MP1\Application Notes\Using low-power modes\dm00449434-stm32mp1-series-using-lowpower-modes-stmicroelectronics.pdf
New : 468992 2020/04/30 09:49:11 Datasheets\STM32MP1\Chip Errata\dm00516256-stm32mp151x3x7x-device-errata-stmicroelectronics.pdf
New : 3544267 2020/04/30 10:10:51 Datasheets\STM32MP1\Data Sheet\stm32mp151a.pdf
New : 3555816 2020/04/30 10:10:47 Datasheets\STM32MP1\Data Sheet\stm32mp153a.pdf
New : 3594030 2020/04/30 09:52:49 Datasheets\STM32MP1\Data Sheet\stm32mp157c.pdf
New : 2764069 2020/04/30 10:14:51 Datasheets\STM32MP1\Fact Sheet\STM32MP1 Press Presentation\en.stm32mp1_press-pres.pdf
New : 80934459 2020/04/30 10:12:09 Datasheets\STM32MP1\Processor Reference Manual\STM32MP151\dm00366349-stm32mp151-advanced-armbased-32bit-mpus-stmicroelectronics.pdf
New : 83957141 2020/04/30 10:11:58 Datasheets\STM32MP1\Processor Reference Manual\STM32MP153\dm00366355-stm32mp153-advanced-armbased-32bit-mpus-stmicroelectronics.pdf
New : 87007389 2020/04/28 13:31:23 Datasheets\STM32MP1\Processor Reference Manual\STM32MP157\dm00327659-stm32mp157-advanced-armbased-32bit-mpus-stmicroelectronics.pdf
New : 3831090 2015/04/29 13:54:43 Documentation\MB7_Docu_HW.pdf
New : 441870 2011/12/18 23:00:00 Documentation\Display options\TX00-DV01-VGA-Display.pdf
New : 1702267 2013/07/24 09:30:02 Documentation\Display options\TX00-DV04-VGA-Display.pdf
New : 1098558 2014/02/13 15:54:08 Documentation\Display options\TX00-DV05_COMTFT-Datasheet.pdf
New : 1065856 2014/02/13 16:13:12 Documentation\Display options\TX00-SV60_COMTFT-Kit-Datasheet.pdf
New : 871478 2012/12/05 09:42:50 Documentation\Display options\TX00-ZV04-LVDS-Display-Adapter.pdf
New : 1668458 2012/03/11 23:00:00 Documentation\Display options\TX00-ZV05-Polytouch-Family-Adapter.pdf
New : 877721 2013/07/02 12:57:29 Documentation\Display options\TX00-ZV07.pdf
New : 122684595 2020/03/12 14:17:13 FlashImages\txmp-1530-release.zip
New : 123192062 2020/03/12 13:36:27 FlashImages\txmp-1570-release.zip
New : 10169 2016/02/18 11:54:24 Schematics\TX Mainboard 7\TXMB7-BOM.txt
New : 393900 2016/02/18 11:53:40 Schematics\TX Mainboard 7\TXMB7-SCM.pdf

History based on this release

TX QS Silicon Vendor SOC Core # Clock Grade L2-Cache I-Cache D-Cache Emb. SRAM NEON VFP
TX93 QS93 NXP i.MX 93 Cortex®-A55
Cortex®-M33 		2
1

1.5 GHz
250 MHz

Ind. 64 KB 32 KB 32 KB 640 KB √ √
TXRZ QSRZ RENESAS RZ/G2L Cortex®-A55
Cortex®-M33 		2
1 		1.2 GHz
200 MHz 		Ind. 256 KB (L3) 32 KB 32 KB 128 KB √ √
TX8P QSXP NXP i.MX8M Plus Cortex®-A53 4 1.6 GHz Ind. 512 KB 32 KB 32 KB 256 KB √ √
TX8M QS8M | QSXM NXP i.MX8M Mini Cortex®-A53
Cortex®-M7 		4
1 		1.6 GHz
750 MHz 		Ind. 512 KB 32 KB 32 KB 256 KB √ √
TX8M QS8M NXP i.MX8M Nano Cortex®-A53 2 1.4 GHz Ind. 512 KB 32 KB 32 KB 256 KB √ √
TX6QP   NXP i.MX6QuadPlus Cortex®-A9 4 800 MHz Ind. 1 MB 32 KB 32 KB 256 KB √ -
TX6Q   NXP i.MX6Quad Cortex®-A9 4 1 GHz Com. 1 MB 32 KB 32 KB 256 KB √ -
TX6DL   NXP i.MX6DualLite Cortex®-A9 2 800 MHz Ind. 512 KB 32 KB 32 KB 128 KB √ -
TX6S   NXP i.MX6Solo Cortex®-A9 1 800 MHz Ind. 512 KB 32 KB 32 KB 128 KB √ -
TX6UL   NXP i.MX6UltraLite Cortex®-A7 1 528 MHz Ind. 128 KB 32 KB 32 KB 128 KB √ -
TXMP QSMP STMicroelectronics STM32MP1 Cortex®-A7
Cortex®-M4 		1-2
1 		650 MHz
209 MHz 		Ind. 256 KB 32 KB 32 KB 708 KB √ √
TXMP2   STMicroelectronics STM32MP255 Cortex®️-A35
Cortex®️-M33		 2
1		 1.5 GHz
400 MHz		 Ind. 256 KB 32 KB 32 KB 640 KB √ √
TX QS NPU ISP Graphics Acceleration Video Codec Camera Interface LCD Interface
TX93 QS93 √ - √ (Blending/Composition, Resize, Color Space Conversion) - √ LVDS
TXRZ QSRZ - - √ √ √ (TXRZ) / - (QSRZ) 24bit and MIPI
TX8P   √ √ √ √ √ LVDS + MIPI + HDMI
  QSXP √ √ √ √ √ MIPI
TX8M QS8M | QSXM - - √ √ (8M Mini) / - (8M Nano) √ MIPI
TX8M   - - √ √ √ LVDS
TX6   - - √ √ √ 24bit or LVDS
TXUL   - - - - √ 24bit
  QSMP - - - - √ 24bit
TXMP QSMP - - √ - √ 24bit and MIPI
TXMP2   √ (1.35 TOPS) - √ (OpenGL ES 3.1, Vulkan 1.1, OpenCL 1.2, OpenVX 1.1) √ (1080p60 encode/decode) √ (MIPI-CSI 2-lane) RGB
TX QS RAM Size RAM Type RAM width ROM Size ROM Type
TX93 QS93 1 GB LPDDR4 16 bit 4 GB eMMC
TXRZ QSRZ 512MB / 1 GB DDR3L-1333 16 bit 4 GB eMMC
TX8P QSXP 2 GB LPDDR4 32 bit 8 GB eMMC
  QSXM 2 GB LPDDR4 32 bit 4 GB eMMC
TX8M - MINI   1 GB / 2 GB DDR3-1600 32 bit 4 GB eMMC
TX8M - NANO   512 MB DDR3-1600 16 bit 4 GB eMMC
  QS8M 512MB / 1 GB DDR3-1600 16 bit 4 GB eMMC
TX6QP   2 GB DDR3-1066 64 bit 4 GB eMMC
TX6Q   1 GB DDR3-1066 64 bit 128 MB / 8 GB SLC NAND / eMMC
TX6DL   1 GB DDR3-800 64 bit 128 MB / 4 GB SLC NAND / eMMC
TX6S   256 MB / 512 MB DDR3-800 16 bit / 32 bit 128 MB / 4 GB SLC NAND / eMMC
TX6UL   256 MB DDR3-800 16 bit 128 MB / 4 GB SLC NAND / eMMC
TXMP QSMP 256 MB / 512 MB DDR3-1066 16 bit 128 MB / 4 GB SLC NAND / eMMC
TXMP2   1 GB LPDDR4 16 bit 4 GB eMMC
  USB Ethernet UART I2C SPI SD / MMC Serial Audio CAN SATA External Memory Interface
TX93 2 2 8 √ √ 1 2 2 - -
QS93 2 2 5 √ √ 1 1 2 - -
TXRZ 2 2 7 √ √ 1 2 2 - -
QSRZ 2 1 4 √ √ 1 1 2 - -
TX8P 2 2 4 √ √ 2 4 2 - PCIe
TX8M 2 / 1 1 4 √ √ 2 4 - - PCIe
QS8M 2 / 1 1 4 √ √ 1 1 - - -
QSXM 2 1 4 √ √ 1 1 - - PCIe
QSXP 2 1 4 √ √ 1 1 2 - PCIe
TX6QP 2 1 5 √ √ 2 2 2 √ 16 bit / PCIe
TX6Q 2 1 5 √ √ 2 2 2 √ 16 bit / PCIe
TX6DL 2 1 5 √ √ 2 2 2 - 16 bit / PCIe
TX6S 2 1 5 √ √ 2 2 2 - 16 bit / PCIe
TX6UL 2 2 8 √ √ 2 1 2 - -
TXMP 2 1 8 √ √ 1 1 2 - -
TXMP2 2 2 up to 9 8 8 1 √ 3 - -
QSMP 2 1 7 √ √ 1 1 2 - -
  Linux Windows
Embedded Compact 7 		Windows
Embedded Compact 2013 		Windows
10 IoT
TX93 | QS93 √ - - -
TXRZ | QSRZ √ - - -
TX8P | QSXP √ - - -
TX8M | QS8M | QSXM √ - - √
TX6QP √ - - -
TX6Q √ √ √ -
TX6DL √ √ √ -
TX6S √ √ √ -
TX6UL √ √ - -
TXMP | QSMP √ - - -
TXMP2 √ - - -
  Supply Voltage U-Boot [mW] Linux [mW] Sleep [mW]
TX93-5210 5V / 3.3V 1110 / 1025 725 / 655 150 / 125
QSRZ-G2L0 3.3V 782 657 500 [1]
TXRZ-G2L0 5V / 3.3V 1040 / 941 960/ 871 985 / 900 [1]
TX8P-ML81 5V / 3.3V 1900 / 1800 1685/ 1600 115 / 100
TX8M-1610 5V / 3.3V 1110 / 1110 900 / 880 130 / 120
TX8M-1620 5V / 3.3V 1275 / 1277 1055 / 1059 260 / 244
TX8M-ND00 5V / 3.3V 860 / 845 670 / 650 85 / 80
TX6Q-8037 5V 2400 850 180
TX6Q-1030 5V / 3.3V 2125 / 2015 800 / 760 80 / 80
TX6U-8033 5V / 3.3V 1925 / 1840 800 / 760 80 / 80
TX6S-8034 5V / 3.3V 1425 / 1310 550 / 530 80 / 80
TXUL-5010 5V / 3.3V 710 / 620 550 / 460 29 / 28
TXUL-5011 5V / 3.3V 760 / 650 550 / 460 29 / 22
TXUL-8013 5V / 3.3V 775 / 675 365 / 340 100 / 76
TXMP-1570 5V / 3.3V 875 / 775 800 / 695 60 / 45
QSMP-1570 3.3V 660 560 20
QSMP-1530 3.3V 620 520 15
QS8M-MQ00 3.3V 840 510 60
QS8M-ND00 3.3V 670 500 45
QSXM-MM60 3.3V 1161 739 40
QSXP-ML81 3.3V 1520 1230 86

[1] Renesas RZ/G2L has no different power domains, voltages cannot be switched off and DRAM self-refresh is not supported.

  glmark2 score CoreMark DhryStone Whetstone
[MIPS] 		Memcpy
[MB/s] 		Memset
[MB/s] 		STREAM
copy [MB/s] 		STREAM
scale [MB/s] 		STREAM
add [MB/s] 		STREAM
triad [MB/s]
TX93-5210 - 12762 9330534 32258 2657 4725 5738 3307 4230 4239
QSMP-1570 74 3788 2199518 10204 620 1437 1345 794 705 584
QS8M-ND00 192 9222 6922571 24390 372 1228 808 814 710 677
TXRZ-G2L0 212 8853 6850488 22727 1095 2322 2358 2286 2363 2377
QS8M-MQ00 280 21075 7912644 27777

1132

 2830 2570 2647 2341 2004
QSXM-MM60 361 21028 7912644 27777 1885 8533 4243 2950 2716 2301
QSXP-ML81 863 21104 7912957 27777 2008 10690 4673 2910 2617 2216
  W L T
TX6 31mm (1.2'') 67.6mm (2.7") 4mm (0.16")
TX8M-LVDS 28mm (1.1") 67.6mm (2.7") 4mm (0.16")
TX93 | TXUL | TXMP | TX8M-MIPI | TX8P | TXRZ 26mm (1.0") 67.6mm (2.7") 4mm (0.16")
QS93 | QSMP | QS8M | QSRZ 27mm (1.05") 27mm (1.05") 2.3mm (0.09")
QSXM | QSXP 29mm (1.14") 29mm (1.14") 2.3mm (0.1")
TXMP2 26mm (1.0") 67.6mm (2.7") 4mm (0.16")
My Store

TXMP2

€0,00
1.5 GHz Dual ARM® Cortex®-A35 based STM32MP255
1GB LPDDR4, 4GB eMMC
-40°C to 85°C
68 x 26 x 4 mm
Datasheet
View product
