Overview

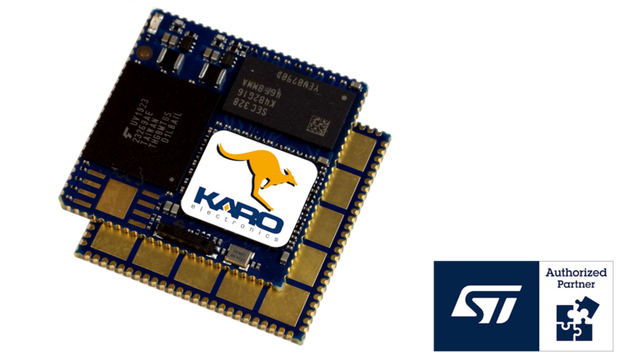

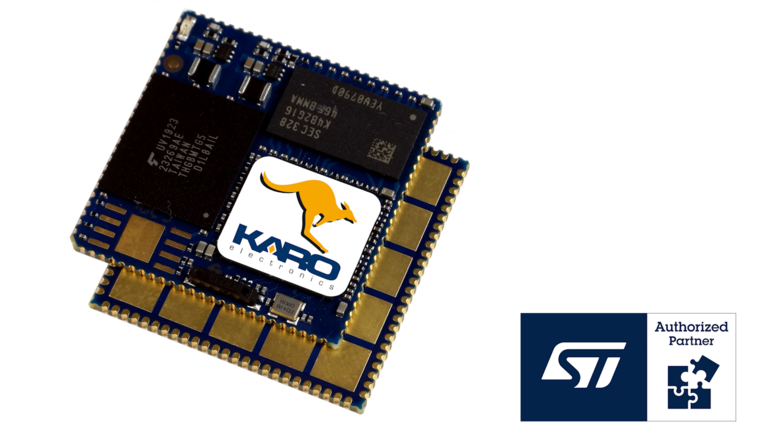

The QSMP-13 is a QFN-style Solder-Down Computer-on-Module from Ka-Ro electronics, based on the STM32MP135C from STMicroelectronics. In a 27mm x 27mm x 2.3mm form factor with 100 pads, it delivers single-core Arm Cortex-A7 performance at 650 MHz, making it the entry-level QSMP module for cost-sensitive industrial control, HMI and IoT applications.
Key Features
Processor
STM32MP135C
1x Cortex-A7 @ 650 MHz
Memory
256 MB DDR3L
4 GB eMMC
Temperature Range
Industrial Grade
-25°C to +85°C
Form Factor
27 x 27 x 2.3 mm
QFN-style Solder-Down
100 pads, 1mm pitch
Display & Vision
24-bit RGB Display Interface
LCD-TFT Controller
Camera interface
OS Support
Linux
Ready for application development
Connectivity
Available Variants
| Feature | QSMP-13 |
|---|---|
| Processor | STM32MP135C |
| Primary Core | 1x Cortex-A7 @ 650 MHz |
| Secondary Core | — |
| RAM | 256 MB DDR3L |
| ROM | 4 GB eMMC |
| Display | 24-bit RGB |
| Security | TrustZone, Secure Boot, AES-256 |
| CAN | 2x CAN-FD |
| Connectivity | Gb Ethernet, USB 2.0 |
| Temperature | -25°C to +85°C |
Design Advantages
QFN-Style Solder-Down
Compact 27mm square QFN package with thermal pad. Single-sided assembly leaves the underside of the carrier board free, and visual solder joint inspection remains possible after soldering.
QS Family Pin-Compatible
Standard QS pinout across the QS Family enables a scalable platform strategy. Design one baseboard and migrate between processors as application requirements evolve.
Cost-Effective Entry
Single-core Cortex-A7 with 256 MB RAM delivers the lowest QSMP price point for cost-sensitive industrial HMI and control applications.
10-Year Longevity
STMicroelectronics 10-year longevity program plus industrial-grade components ensure your product design remains in production for years.
Electrical Characteristics
| Parameter | Min | Max |
|---|---|---|
| Power Supply (VIN) | 3.3V | 3.3V |
| I/O Voltage | - | 3.3V |
| Operating Temperature | -25°C | +85°C |
Documentation
Download the full QSMP-13 datasheet for complete specifications, pinout details, and design guidelines.
Download Datasheet (PDF)
