Overview
The QSBASE4 Eval Kit + QSXM-MM60 is the evaluation platform for the Ka-Ro NXP i.MX 8M Mini Quad on the larger 29 mm QSX form factor — adding PCIe and USB 3.0 to the standard i.MX 8M Mini connectivity. Pre-fitted in the QSBASE4 socket; ideal for HMIs, industrial vision starters and PCIe-attached storage or wireless designs.
What's in the Box

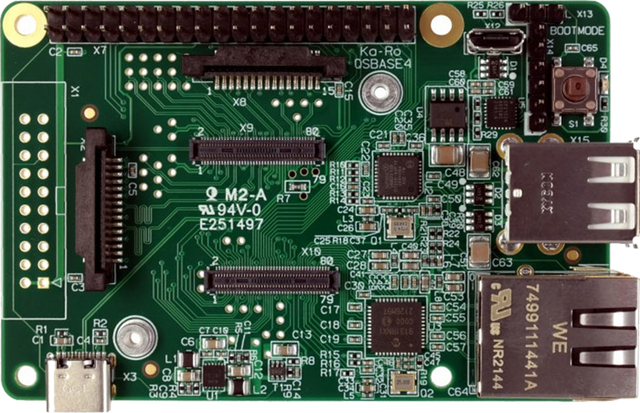

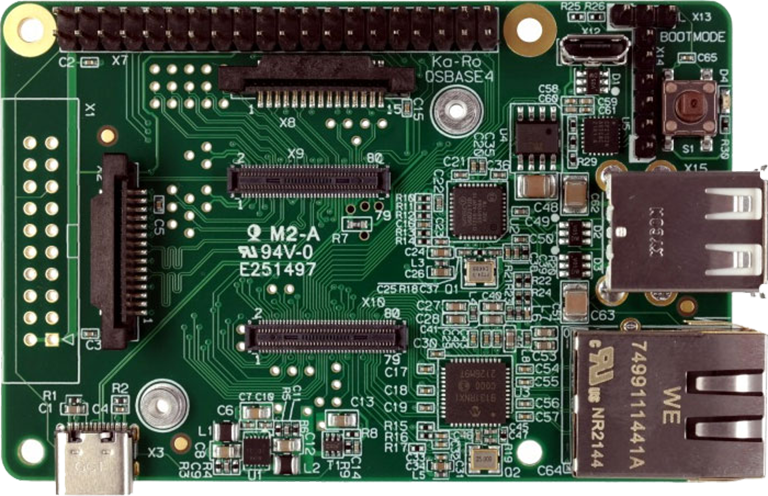

QSBASE4 Baseboard
QS-family carrier board with USB-C power, MIPI-DSI/LVDS, Gigabit Ethernet, USB-OTG, micro-SD, debug UART and a 40-pin GPIO header.
QSXM-MM60 Module
Pre-fitted in the 0.5 mm Hirose socket. Swap freely with any other QS-family /SOCK module — NXP i.MX 8M Mini Quad XM ready out of the box.
Cables & Adapters
USB-A → USB-C power cable and USB-serial debug adapter included. Quick-start card in the box.
Software & Support
Pre-flashed Yocto-Linux BSP, full schematics, design package, ikoniq engineering support and a 12-month warranty.
QSXM-MM60 Module at a Glance
| Specification | QSXM-MM60 |
|---|---|
| SoC | NXP i.MX 8M Mini |
| CPU | 4× Cortex-A53 @ 1.8 GHz |
| Real-Time Core | Cortex-M4 @ 400 MHz |
| RAM | 2 GB LPDDR4 |
| Storage | 4 GB eMMC |
| Display | MIPI-DSI + HDMI 1.4 capable |
| Connectivity | PCIe Gen 2 + USB 3.0 (QSX adds 8 corner pads) |
| Form Factor | 29 × 29 mm QSX QFN-style (/SOCK option) |
| Temperature | -25°C to +85°C (Industrial) |
QSBASE4 Baseboard Features
Why this Kit?
One Socket, Every Module
The 0.5 mm Hirose socket on QSBASE4 accepts every QS-family /SOCK module — i.MX 93, i.MX 91, STM32MP, RZ/G2L and more. Test multiple processors on the same baseboard.
QSX Pin-Compatible
QSX 29 mm form factor adds PCIe and USB 3.0 around the standard 27 mm QS area — fully baseboard-compatible with the rest of the QS family.
Production Migration
Evaluate on this kit, then ship the same code base on the solder-down production module. No carrier-board re-spin, no software port.
Made in Germany
QSBASE4 and QS-family modules are designed and manufactured by Ka-Ro Electronics. 12-month warranty and 10+ year availability commitment.
Software & Support
Yocto-Linux BSP
Reference image based on Yocto kirkstone / scarthgap. Boots straight to a Linux console out of the box.
Mainline U-Boot + Linux Kernel
Long-term-supported sources, including Ka-Ro device-tree overlays and module-specific patches.
Schematics & Design Package
Full carrier-board schematics, gerbers and BOM available on request to support your own carrier design.
Documentation
Datasheets for the QSXM-MM60 module and the QSBASE4 baseboard.
