Press release · Stockholm · 1 October 2019
Quad and dual Cortex-A53 modules with 4Kp30 H.265 video bring NXP's mainstream i.MX 8M to pin-compatible TX and 27 mm solder-down QS form factors.

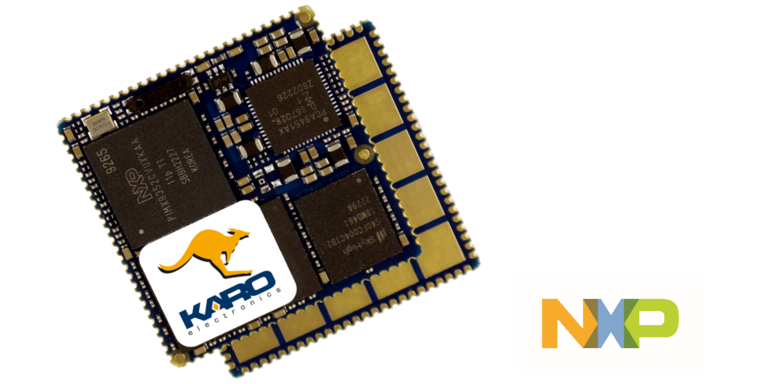

Strategic Embedded has announced the TX8M-1610, TX8M-ND00, QS8M-MQ00 and QS8M-ND00 System-on-Modules — four new NXP i.MX 8M Mini and Nano-based modules covering both pin-compatible TX and 27 mm solder-down QS form factors. The launch brings NXP's mainstream 14 nm i.MX 8M Mini and Nano to Ka-Ro hardware — a Cortex-A53-class upgrade path from TX i.MX 6 designs and the modern entry point for QS Family Concept designs.
Pick your i.MX 8M variant
- i.MX 8M Mini (TX8M-1610 / QS8M-MQ00) — quad Cortex-A53 @ 1.6 GHz + Cortex-M4. 1 GB DDR3L. Best for HMI, gateways, multi-display.
- i.MX 8M Nano (TX8M-ND00 / QS8M-ND00) — dual Cortex-A53 @ 1.4 GHz + Cortex-M7. 512 MB DDR3L. Cost-optimised, lower power.
- Same TX or QS carrier board across both — drop in your variant by spec, not by redesign.
Engineering specifications
| Item | TX8M-1610 | TX8M-ND00 | QS8M-MQ00 | QS8M-ND00 |
|---|---|---|---|---|
| Processor | i.MX 8M Mini | i.MX 8M Nano | i.MX 8M Mini | i.MX 8M Nano |
| CPU | 4× A53 @ 1.6 + M4 | 2× A53 @ 1.4 + M7 | 4× A53 @ 1.6 + M4 | 2× A53 @ 1.4 + M7 |
| RAM | 1 GB DDR3L | 512 MB DDR3L | 1 GB DDR3L | 512 MB DDR3L |
| Flash | 4 GB eMMC | |||
| Video | 4Kp30 H.265 / VP9 decode + Vivante GPU | |||
| Display | MIPI-DSI | |||
| Form factor | 68 × 26 × 4 mm TX SO-DIMM | 27 × 27 × 2.3 mm QFN solder-down | ||
| Temperature | −25 °C to +85 °C industrial | |||
| OS | Linux (mainline BSP by Ka-Ro) | |||
Availability and pricing
All four modules available now via Strategic Embedded's webshop. TX8M-1610: €79 Qty 1. TX8M-ND00: €56 Qty 1. QS8M-MQ00: €94 Qty 1. QS8M-ND00: €68 Qty 1. Volume discounts available.
Designing on i.MX 8M Mini or Nano?
Compare TX8M and QS8M product pages.
View TX8M product page → View QS8M product page →Downloads
About Strategic Embedded
Strategic Embedded is a division of Strategic Test AB, a specialist embedded electronics and test and measurement distributor with offices in Stockholm and Aachen Germany. Strategic Test has been an international distributor for KaRo Electronics GmbH since 2003 and exports to clients in the USA, UK, Germany, Italy, Spain, Sweden and Australia.
About Ka-Ro Electronics GmbH
With a core design team that was one of the pioneers of Transputer-based RISC processor parallel computing, Ka-Ro has grown from being a pioneer to a global leader in the ARM-based System on Modules market, with over 1 Million TX series of SoM installed. Ka-Ro's ARM-based SOMs are used worldwide in demanding industrial and transportation applications and medical devices. Based on NXP® and Qualcomm® processors, development kits include custom and continuing support for Embedded Linux and Microsoft® Windows Embedded BSPs. Customers can depend on Ka-Ro for the proven quality, expert support and guaranteed long-term availability they need to succeed.
