Strategic Test supplies the widest range of Development Kits and world's smallest cpu modules based on the Freescale i.MX27, i.MX51, i.MX25 processors and Marvell XScale PXA320 and PXA270 processors. The Kits run Linux 2.6, Windows CE 5.0 or Windows CE 6.0

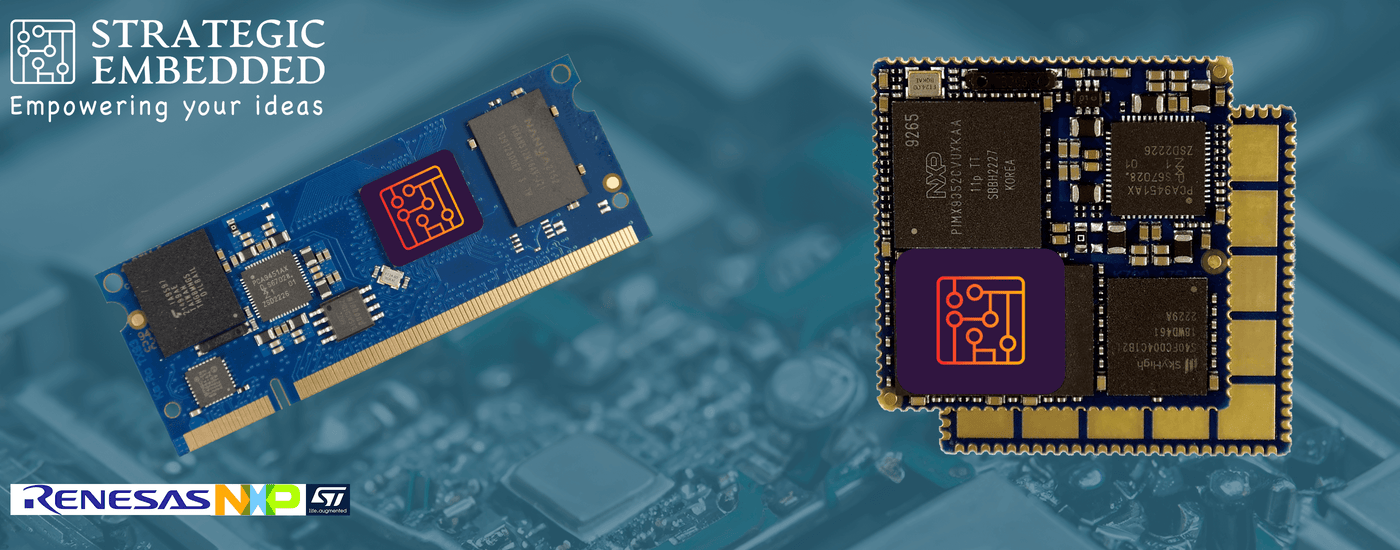

The low-cost System-on-Modules modules are smaller than a credit card and contain the Marvell or Freescale processor, SDRAM and Flash memory. The modules are fast way for engineers to impliment a new product design, as they remove the need for you to design your own cpu system and just require that you produce a 4 or 6-layer pcb carrier board.
Marvell Intel PXA270 CPU Linux embedded cards, modules, SBC's and Development Platforms
Marvell Intel PXA320 embedded cards, modules, SBC's and Development Platforms
Freescale i.MX27, i.MX37, i.MX51 Development Kits and Computer-on-Modules (COM)
Triton PXA270 Development Kit-3
Triton PXA320 Development Kit-4
TX i.MX27, i.MX51, i.MX25 Development Kit-5
Triton-320 PXA320 module
Triton-270 PXA270 datasheet
Strategic Test offers the widest range of high-speed data acquisition and waveform generation boards, with more than 150 different PCI, 3U PXI/CompactPCI and 6U CompactPCI boards in the UltraFast(TM) range.
The A/D cards, which function as Digitizers, Oscilloscopes and Transient Recorders, are available with maximum sampling rates from 200 kS/s to 500 MS/s, A/D resolutions of 8, 12, 14 or 16 bit ADC's, up to 8 analog input channels per board and a maximum onboard memory of 4 GByte. All cards provide true simultaneous sampling, extensive triggering features, a memory segmentation option for RADAR applications.
Analog signals can be generated using the D/A cards, which also replace traditional arbitrary waveform generators. 8 and 14-bit DAC resolutions are available, with maximum output rates to 125 MS/s. A choice of 1, 2 or 4 output channels per cards is available depending on model.
Semiconductor manufacturers and engineers involved with ATE are particularly interested in our high-speed Digital I/O cards and Digital Pattern Generator boards. The Digital I/O cards allow up to 32 bit 3.3V TTL signals to be recorded or replayed at up to 125 MHz, or 64 bits to 60 MHz. Signals can be issued to a DUT and the response simultaneously recorded for long periods due to the large onboard memory. The Pattern Generator cards are available with either 16 or 32 bits and up to 40 MHz clock rates. Uniquely, each group of 4 bits can be independently programmed with logic output levels between -2 and +10V, allow multiple logic families, including differential logic, to be supported by a single card.
We also offer the widest software support. In addition to supporting all versions of Microsoft Windows, we also include drivers for all popular distributions of Linux (both kernels 2.4 and 2.6). Linux driver source code is also available for special applications such as multiprocessor support. Third party programs such as LabVIEW, MATLAB, Agilent VEE, DASYLab, LabWindows/CVI and Excel are also supported through optional drivers.
Strategic Test back-up our customer commitment by providing a 24 month hardware warranty and free of charge technical support and software updates for the product lifetime, including future OS drivers. Unlike other companies, we don't charge for Premium Support or Software Maintenance Contracts.
